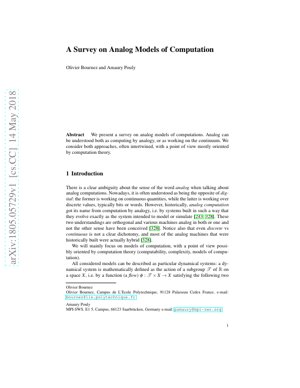

A Survey on Analog Models of Computation

1. Introduction

Analog computation presents a dual interpretation in computer science: computing by analogy and computation over continuous quantities. Historically, analog systems were designed to evolve identically to the systems they modeled, while contemporary understanding emphasizes the continuous nature of computation as opposed to discrete digital computation.

Key Insights

Analog computation bridges continuous mathematics and computational theory
Most historical analog machines were hybrid systems
The discrete vs continuous dichotomy is not absolute
Dynamical systems provide a unified framework

2. Dynamical Systems Framework

2.1 Mathematical Foundations

A dynamical system is formally defined as the action of a subgroup $T$ of $\\mathbb{R}$ on a space $X$, characterized by a flow function $\\phi: T \\times X \\rightarrow X$ satisfying:

$$\\phi(0,x) = x$$

$$\\phi(t, \\phi(s,x)) = \\phi(t+s,x)$$

2.2 Time Classification

Subgroups of $\\mathbb{R}$ are either dense in $\\mathbb{R}$ or isomorphic to integers, leading to continuous-time and discrete-time systems respectively.

3. Classification of Models

3.1 Space-Time Taxonomy

The survey presents a comprehensive classification of computational models based on time and space characteristics:

Continuous Time/Continuous Space

Analog neural networks, Differential equations

Discrete Time/Continuous Space

Recursive analysis, BSS model

Continuous Time/Discrete Space

Population protocols, Chemical reaction networks

3.2 Hybrid Systems

Most practical analog systems exhibit hybrid characteristics, combining continuous and discrete elements in their operation.

4. Technical Framework

4.1 Mathematical Formulation

For continuously differentiable systems, the dynamics can be expressed as:

$$y' = f(y)$$

where $f(y) = \\frac{d}{dt}\\phi(t,y)\\big|_{t=0}$

4.2 Computational Equivalence

The survey establishes connections between analog models and classical computation theory, demonstrating that many continuous systems can simulate Turing machines and vice versa.

5. Experimental Results

The paper discusses various experimental implementations of analog computation models, including:

Electrical circuit implementations of differential equation solvers
Chemical reaction networks performing logical operations
Optical computing systems for specific computational tasks

Figure 1: Model Classification Diagram

The classification diagram illustrates the positioning of various computational models in the time-space continuum, showing the relationships between traditional digital computation, analog systems, and emerging hybrid approaches.

6. Code Implementation

Below is a Python implementation demonstrating a simple analog computation model using ordinary differential equations:

import numpy as np
from scipy.integrate import solve_ivp

class AnalogComputer:
    def __init__(self, system_function):
        self.f = system_function

    def compute(self, initial_conditions, time_span):
        """
        Solve the dynamical system: dy/dt = f(y)

        Parameters:
        initial_conditions: array-like, initial state
        time_span: tuple (t_start, t_end)

        Returns:
        Solution object from solve_ivp
        """
        solution = solve_ivp(
            self.f,
            time_span,
            initial_conditions,
            method='RK45'
        )
        return solution

# Example: Linear system
def linear_system(t, y):
    A = np.array([[-0.1, 2.0], [-2.0, -0.1]])
    return A @ y

# Initialize and run computation
computer = AnalogComputer(linear_system)
result = computer.compute([1.0, 0.0], (0, 10))

7. Applications and Future Directions

Analog computation models find applications in:

Neuromorphic computing systems
Real-time control systems
Scientific computing and simulation
Edge computing and IoT devices

Future research directions include:

Hybrid analog-digital architectures
Quantum-inspired analog computation
Energy-efficient analog AI systems
Formal verification of analog systems

Original Analysis

This survey by Bournez and Pouly provides a comprehensive framework for understanding analog computation through the lens of dynamical systems theory. The authors successfully bridge the historical concept of "computation by analogy" with modern continuous computation paradigms, demonstrating that the dichotomy between analog and digital computation is more nuanced than commonly perceived.

The mathematical foundation presented, particularly the dynamical systems formulation using flow functions $\\phi: T \\times X \\rightarrow X$, provides a rigorous basis for analyzing computational properties of continuous systems. This approach aligns with recent developments in neuromorphic computing, where systems like Intel's Loihi and IBM's TrueNorth chips implement principles similar to those discussed in the survey.

Notably, the classification of models based on time and space characteristics offers valuable insights for understanding the computational capabilities of various systems. The inclusion of unconventional models like population protocols and chemical reaction networks demonstrates the breadth of analog computation beyond traditional electrical analog computers.

Compared to digital computation models, analog systems offer potential advantages in energy efficiency and computational density for specific problem classes, as evidenced by research from institutions like MIT's Analog VLSI and Signal Processing Group. However, challenges remain in programmability, precision, and formal verification, areas where digital systems excel.

The survey's emphasis on hybrid systems reflects current trends in computing architecture, where systems like Google's Tensor Processing Units (TPUs) incorporate analog-like computation for neural network inference while maintaining digital programmability. This hybrid approach may represent the future direction of practical analog computation systems.

References to foundational work in computational theory, such as the Blum-Shub-Smale (BSS) model and recursive analysis, provide important context for understanding the theoretical limits of analog computation. The connections established between continuous systems and classical computation theory suggest that many insights from computer science can be transferred to analog domains.

8. References

Bournez, O., & Pouly, A. (2018). A Survey on Analog Models of Computation. arXiv:1805.05729
Blum, L., Shub, M., & Smale, S. (1989). On a theory of computation and complexity over the real numbers. Bulletin of the American Mathematical Society
Moore, C. (1990). Unpredictability and undecidability in dynamical systems. Physical Review Letters
Siegelmann, H. T., & Sontag, E. D. (1994). Analog computation via neural networks. Theoretical Computer Science
MIT Analog VLSI and Signal Processing Group. (2023). Recent Advances in Analog Computation
Intel Neuromorphic Computing Lab. (2022). Loihi 2: An Analog-Inspired Digital Architecture
